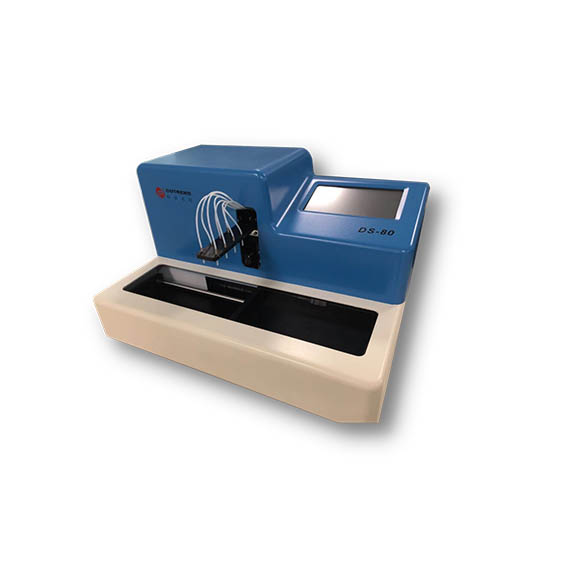

DS-80 automatic liquid separator can realize micro liquid separation and improve the efficiency of laboratory liquid separation. The unique design of high-precision syringe assembly structure is adopted to achieve high-precision and consistent liquid separation effect. The minimum separation volume can reach 3ul, and the separation accuracy is far above the requirements of ISO-8655.
Application: laboratories, centers for Disease Control and prevention, reagent and drug manufacturers and other scenes with liquid subpackage demand.
Specification | |
Separation Principle | 8-channel syringe was used for liquid separation |
| Single row 4-channel or 8-channel plate types, such as 96 well enzyme labeled plate, 32 or 16 well customized plate, etc |
Separation Mode | The whole plate or any hole position is used for liquid separation. According to the requirements, different separation volumes can be set independently for the whole plate, each row or each hole |
Separation Volume | 3~5000ul（0.5ul adjustable） |
Separation Height | Height adjustable according to different plates |
Separation speed | Adjustable, 8 speed ranges from low to high. 10S for 96 plate. |
Function | With Suction function for each channel, after liquid separation,it could eliminate the liquid residue at the liquid distributor,so to effectively prevent liquid dripping. |
L×W×H | 510mm×400mm×300mm |
Power | AC110~240V,50/60Hz |
